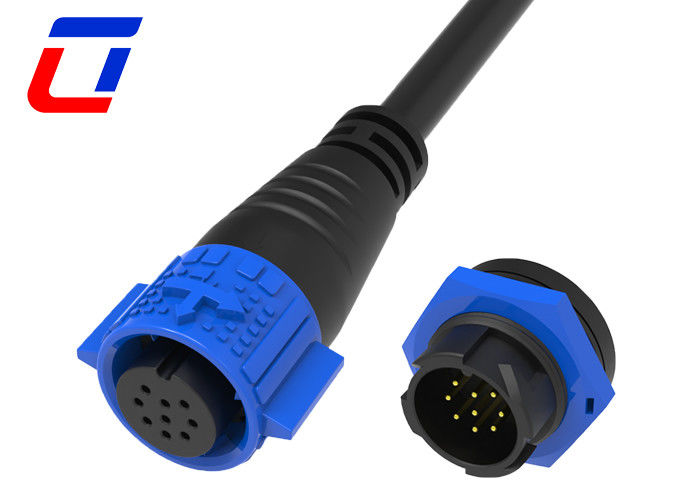

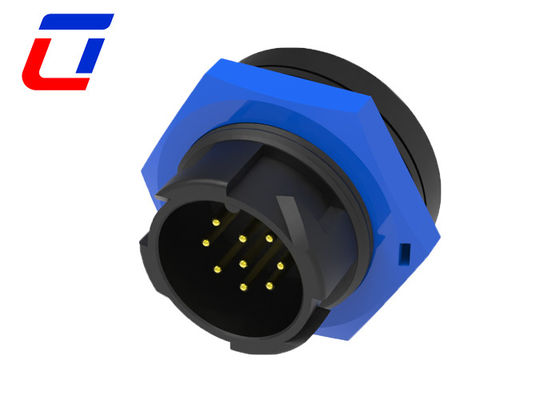

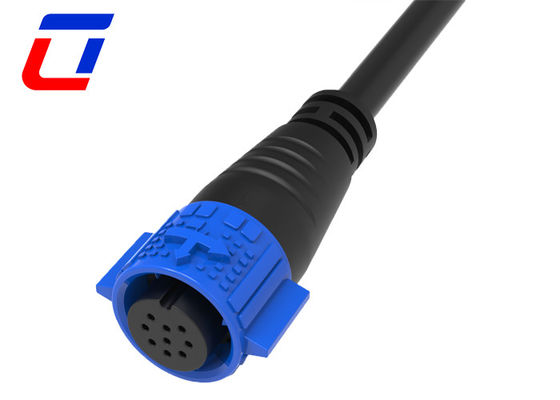

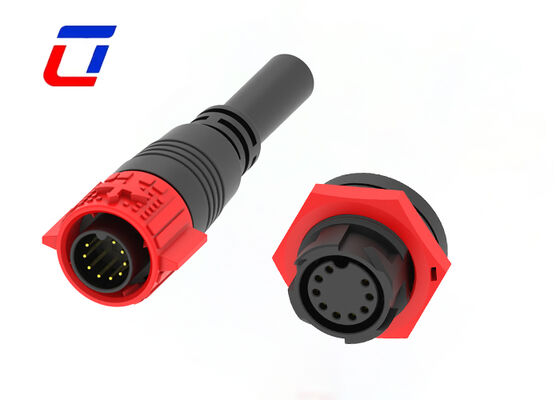

9 Pin Data Connector M19 IP67 Waterproof Connector For LED
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
- 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
- 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
- Field assembly version:both wire to wire and wire to board options
- Current rated 20A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Application industries
- Growth Lights
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Quick Description
Professional Technical Consultation: Our experienced engineering team offers one-on-one support to address inquiries about pin definitions, data transmission speed, power load capacity, environmental adaptability, and compatibility with your specific equipment (e.g., industrial sensors, communication devices, outdoor electronics). We provide tailored solutions based on your application scenarios to optimize performance.
Certification & Documentation Support: We provide detailed product specifications, IP67 test reports, and certification documents (CE, RoHS, UL, etc.) to meet your import, quality inspection, or project qualification requirements. Our team can explain compliance standards and technical parameters in detail to help you navigate regulatory hurdles.
Logistics & Cost Consultation: Based on your order quantity, delivery location, and project timeline, we offer personalized logistics solutions (air freight, sea freight, express delivery) with transparent pricing and accurate delivery time estimates. We also provide cost-saving suggestions for bulk orders to help you optimize your budget.
| Electrical Parameters |
| Number of Poles |
6Pin |
| Current Rating |
5 Amax. |
| Voltage Rating |
300VAC max |
| Durability Voltage |
1500VAC @ 60 s. |
| Technical Parameters |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) when mated |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
| Operation Parameters |
| Voltage Rating |
300VAC max |
| Current Rating |
5A max |
| Min Wire Size OD |
3.0mm ~ 6.0mm |
| Max Wire Size OD |
8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area |
0.5mm2 ~ 2.5mm2 |
Design Sketch
