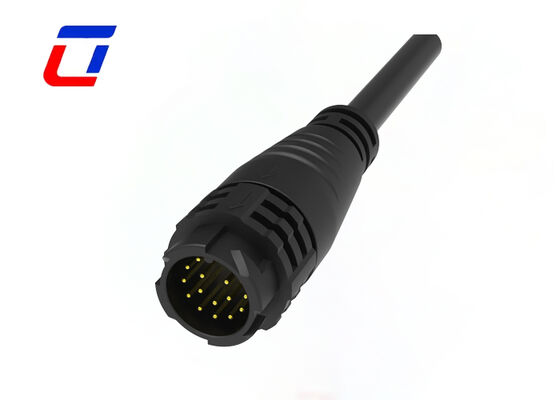

Name: M19 16 Pin Outdoor Waterproof Cable Connector IP67 500V Quick Lock Male Female Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Aperçu Produits cable connecteur imperméable

M19 16 Pin Outdoor Waterproof Cable Connector IP67 500V Quick Lock Male Female Connector

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Numéro de modèle:	M19

Conditions de paiement et expédition:

Quantité de commande min:	Négociation
Prix:	Négociable
Détails d'emballage:	1. sac en plastique;2. Carton;3Selon les exigences du client
Délai de livraison:	3 à 6 jours ouvrables
Conditions de paiement:	T/T, D/P, L/C, D/A, Western Union, MoneyGram
Capacité d'approvisionnement:	100 000 paires Montly

Contact

Description de produit détaillée

Note actuelle:	5A	ÉPINGLE:	16 broches
Matériel:	Nylon	Température de fonctionnement:	-40 ℃-+105 ℃
Taper:	fil pour câbler le connecteur	Indice de résistance aux flammes:	UL94-V0
Mettre en évidence:	M19 waterproof cable connector IP67 , 16 pin quick lock connector , outdoor waterproof male female connector

M19 16 Pin Outdoor Waterproof Cable Connector IP67 500V Quick Lock Male Female Connector

Product Overview

M19 IP67 Cable Connectors, 500V Male to Female Industrial Connector with quick lock connection for efficient installation and disassembly.

Key Features

Excellent waterproof and dustproof performance with IP67 protection level
Quick lock connection method for efficient installation and disassembly
Wide adaptability to outdoor application scenarios
Push lock quick release system
Multiple pin configurations available: 2Pin-18Pin for power and signal applications
Field assembly version with wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported
OEM/ODM welcome

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Electrical Parameters

Number of Poles	16Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Product Images

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: Are your products certified? What certifications do you have?

A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Q: How can I get samples?

A: It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.

Q: How do I place an order? What is the process?

A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
