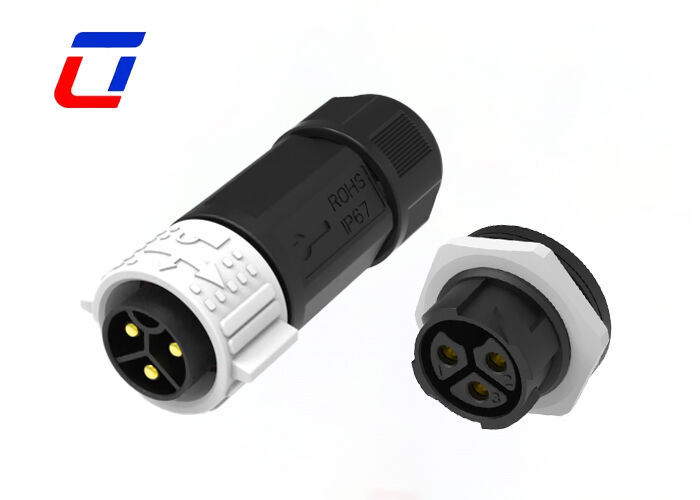

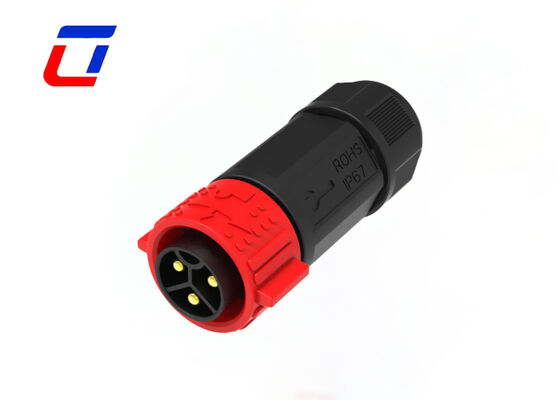

Industrial Circular Connector M25 3 Pin 50A IP67 Waterproof Connector
Description:
Plug and socket quick-lock structure, fitting new energy outdoor operation and maintenance practical operation: Equipped with exclusive quick-lock mechanism for plug and socket, no professional tools are needed, single person can complete docking and locking (solving the inconvenience of operation in high-altitude and remote scenarios of new energy power stations); after locking, it has super anti-vibration and anti-pulling performance, which can resist practical interferences such as wind in photovoltaic power stations and jolting during energy storage vehicle transportation, effectively avoiding power interruption caused by loose connectors; during later operation and maintenance, it can be separated by gently flipping to unlock, greatly improving the maintenance efficiency of new energy equipment.
Temperature-resistant and durable materials, matching new energy wide-temperature operation needs: The shell is made of new energy-specific high-flame-retardant weather-resistant engineering plastics, which have passed rigorous tests such as high-low temperature cycles (-40℃~105℃), UV aging, and salt spray corrosion, and can adapt to different climates such as northern cold photovoltaic power stations and southern high-temperature energy storage stations; the internal conductors of the plug and socket are made of high-purity oxygen-free copper with silver-plated surface, excellent conductivity, which can effectively reduce heat loss during 50A high-current transmission, with a plug-in life of more than 10000 times, meeting the long-term high-frequency operation and maintenance needs of new energy equipment.
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Quick Details of IP67 waterproof Connector
This model of connectors is engineered for a wide range of integrated power and signal applications, boasting an intuitive push-to-lock mechanism. Insertion takes just one second, with the connector locking securely automatically—no complex operations required.
The integrated power-and-signal all-in-one design is gaining escalating popularity across diverse equipment. It effectively eliminates the need for separate power and signal connectors, offering an optimal solution especially for space-constrained installations.
Ulinkcon provides professional cable assembly solutions for multi-pin connectors. Simply submit your detailed cable specifications (e.g., gauge, length, insulation type), and our comprehensive customization support is readily available to meet your specific requirements.
| Technical Parameters |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) when mated |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
| Operation Parameters |
| Voltage Rating |
600VAC max |
| Current Rating |
50A max |
| Min Wire Size OD |
6.5mm ~ 10mm |
| Max Wire Size OD |
10.5mm ~ 18mm |
| Max.Cable Cross Section Area |
0.5mm2 ~ 6.0mm2 |
Product Configuration
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: Is there a discount for large - quantity orders?
A: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.
3. Q: Are your products certified? What certifications do you have?
A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
4. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
