Name: IP67 M25 Gold Plated Wire Connectors 300V 2+20 Pin Plug Socket Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Aperçu Produits Pin Connectors Waterproof multi

IP67 M25 Gold Plated Wire Connectors 300V 2+20 Pin Plug Socket Connector

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Ulinkcon
Certification:	CE/Rohs
Numéro de modèle:	M25

Conditions de paiement et expédition:

Quantité de commande min:	négociation
Prix:	Négociable
Détails d'emballage:	Boîte
Délai de livraison:	5 à 8 jours ouvrables
Conditions de paiement:	T/T,D/A,D/P,MoneyGram,L/C
Capacité d'approvisionnement:	100000 paires par mois

Contact

Description de produit détaillée

Indice d'étanchéité:	IP67	Nombre de broches:	Connecteur étanche 22 broches
Plage de température:	-40 ℃ ~ + 105 ℃	Application:	Panneau solaire
Couleur:	Rouge/Bleu/Vert	Indice de résistance aux flammes:	UL94-V0
Mettre en évidence:	IP67 waterproof M25 wire connectors , gold plated 2+20 pin connector , 300V multi pin plug socket

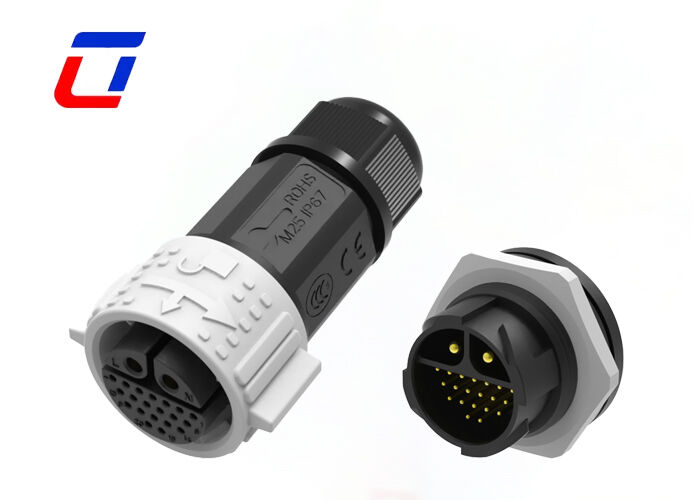

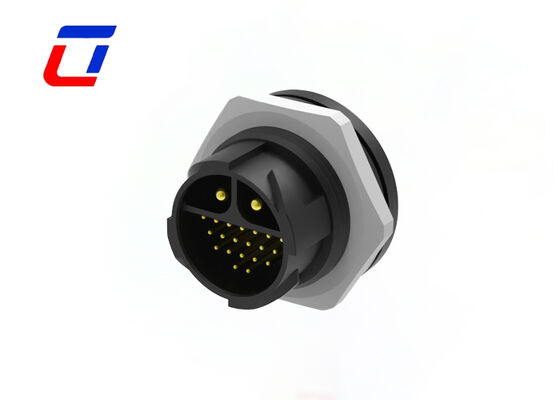

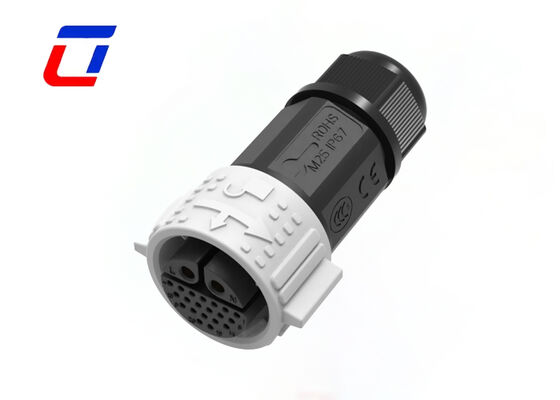

Signal And Power Multi Connectors M25 2+20 Pin Waterproof 300 Volt Wire To Board

Quick Details of Multi pin connector waterproof

2+20 Pin Multi-Channel Core Specifications: Adopts a 2+20 Pin (2-pin power + 20-pin signal) separated multi-channel design. The 20-pin signal channel can meet the needs of simultaneous transmission of massive signals, and the 2-pin power channel is suitable for 300V voltage output scenarios, eliminating mutual interference between power supply and multiple groups of signals from the structure; the interface specification is M25 standard, accurately matching the wire-to-board connection mode, adapting to the composite connection needs of multiple signals and single power supply in the industrial field.

Professional Waterproof Protection Performance: Equipped with a high-standard waterproof structure, the shell adopts a sealed integrated molding process with a customized waterproof rubber ring, which can effectively resist the erosion of rainwater, sand, oil stains and humid environments. It is suitable for outdoor open-air operations or complex working scenarios with high dust and moisture, providing stable protection for signal and power transmission of wire-to-board connections, and greatly reducing the failure risk caused by environmental factors.

Exclusive Advantages of Wire-To-Board Connection: Designed specifically for wire-to-board connection scenarios, the cable end and circuit board end are accurately docked with high connection firmness, which can resist slight vibration and displacement during equipment operation, avoiding poor contact problems that are easy to occur in traditional connection methods; the wiring process is simple and standardized without complex tools, adapting to on-site rapid assembly and later maintenance needs.

High-Stability Transmission and Safety Guarantee: The conductor is made of high-conductivity oxygen-free copper, and the surface is anti-oxidation tinned, which not only ensures low loss and low heat generation of power transmission under 300V voltage, but also ensures clear, delay-free and distortion-free transmission of 20-pin multi-channel signals; the shell is made of high-insulation grade engineering plastic, with excellent impact resistance and aging resistance, eliminating potential safety hazards such as electric leakage and signal leakage, and meeting the safe operation standards of industrial equipment.

Diversified Industrial Adaptation Scenarios: Widely used in scenarios requiring wire-to-board connections such as industrial automated production lines, intelligent control cabinets, security monitoring systems, new energy auxiliary equipment, medical instruments, and instruments and meters, responsible for massive signal transmission and 300V voltage power supply; it can adapt to the core control units of medium and low voltage industrial equipment, providing reliable connection support for the automated and intelligent operation of industrial production.

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Main Features

Field assembly version cable to board
Cable assembly service available
Quick lock fast relese structure
Waterproof rated sufficient for most outdoor applications
Power signal in one set
2pin power 20pin signal arrangement

Electrical Parameters
Number of Poles	22pin wire to board connector
Current Rating	15A +5A
Voltage Rating	300VAC max
Durability Voltage	2500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max.Cable Cross Section Area	0.5mm² ~ 6.0mm²

Product Configuration

IP67 M25 Gold Plated Wire Connectors 300V 2+20 Pin Plug Socket Connector 0

Product Dimension

More Technical Details

FAQ

Q1:What is rated voltage?

A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2:How to buy your products?

A2: You need to do as followings:

* Confirm Current Rating and Number of Contacts

* Confirm Assembly style

* Confirm Cable Wire guage

* Confirm Cable Length and Material.

Q3:How to track my shipment?

A3: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.
