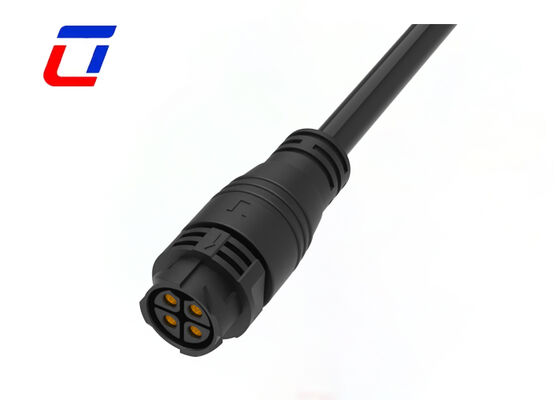

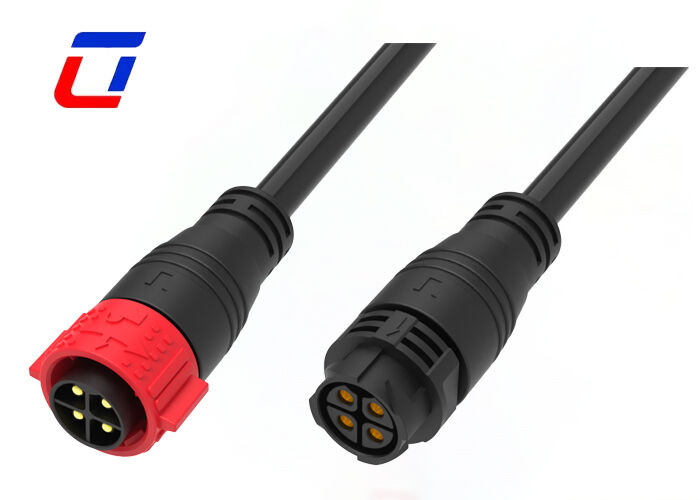

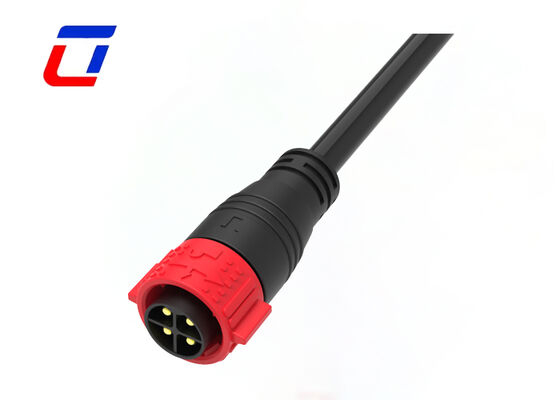

Name: M25 4 Pin Male And Female Wire Connectors 300V Led Quick Connector IP67
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Aperçu Produits cable connecteur imperméable

M25 4 Pin Male And Female Wire Connectors 300V Led Quick Connector IP67

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Ulinkcon
Certification:	CE/Rohs
Numéro de modèle:	M25

Conditions de paiement et expédition:

Quantité de commande min:	Négociation
Prix:	Négociable
Détails d'emballage:	Carton d'exportation de haute qualité
Délai de livraison:	3 à 6 jours ouvrables
Conditions de paiement:	T/T,D/A,D/P,MoneyGram,L/C
Capacité d'approvisionnement:	100000 paires par mois

Contact

Description de produit détaillée

Nombre de broches:	4 broches	Actuel:	30a
Tension nominale:	300V	Matériel:	Nylon
Niveau de protection:	IP67	Indice de résistance aux flammes:	UL94-V0
Mettre en évidence:	4 pin waterproof wire connector , IP67 LED quick connector , 300V male female cable connector

M25 4 Pin Male And Female Wire Connectors 300V Led Quick Connector IP67

Product Overview

Waterproof Electrical M25 4 Pin Waterproof Push Lock Connectors engineered for industrial LED lighting and electrical control systems. This connector delivers stable, low-loss power transmission with a 300V rated voltage and features an industrial-grade quick-connect structure for tool-free, one-step docking. The design simplifies on-site wiring procedures and reduces installation time for industrial projects by 60%.

With an IP67 waterproof and dustproof rating, it is equipped with a wear-resistant sealing ring and rugged shell, effectively resisting rain, dust, humidity, and oil contamination. Ideal for industrial LED fixtures, production line lighting, and outdoor industrial equipment. Compliant with standard M25 interface specifications, it ensures broad compatibility with 4-pin industrial LED and electrical devices, providing reliable connectivity for commercial and industrial automation projects.

Main Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin and 2+20Pin available
Field assembly version: both wire to wire and wire to board options
High current rated waterproof connector good choice up to 30A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters

Parameter	Specification
Number of Poles	4Pin waterproof connector
Current Rating	30A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s

Technical Parameters

Parameter	Specification
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Operation Parameters

Parameter	Specification
Voltage Rating	600VAC max
Current Rating	30A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max. Cable Cross Section Area	0.5mm² ~ 6.0mm²

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2: What payment methods do you accept?

A2: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.

Q3: What shipping methods do you offer? How long is the delivery time?

A3: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.
