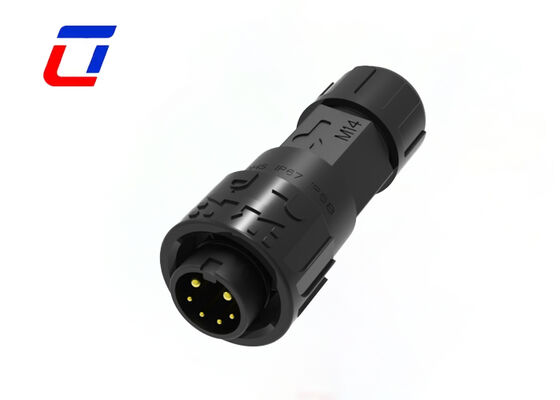

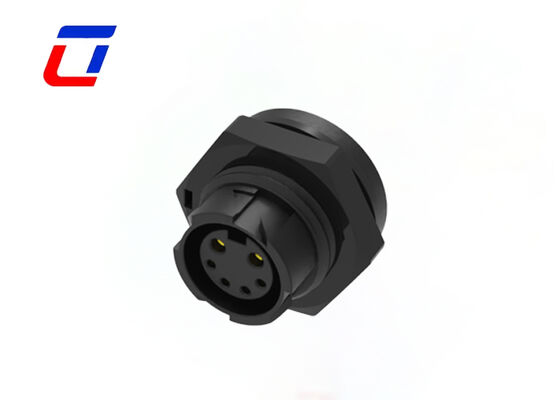

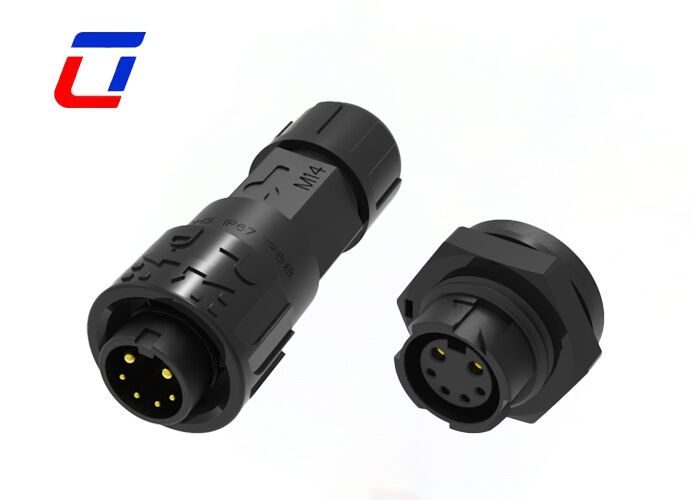

Name: M16 2+4 Pin IP67 Connectors Waterproof 300V Low Voltage Wire To Board Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Aperçu Produits Prise imperméable de prise

M16 2+4 Pin IP67 Connectors Waterproof 300V Low Voltage Wire To Board Connector

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Numéro de modèle:	M16

Conditions de paiement et expédition:

Quantité de commande min:	Négociation
Prix:	Négociable
Détails d'emballage:	1. Sac en plastique ; 2. Carton ; 3. Selon les exigences du client
Délai de livraison:	3 ~ 6 jours ouvrables
Conditions de paiement:	T/T, D/P, L/C, D/A, Western Union, MoneyGram
Capacité d'approvisionnement:	100 000 paires mensuellement

Contact

Description de produit détaillée

Taper:	connecteur étanche	Épingle:	2+4 broches
Matériel:	PA66,UL94-V0	Niveau d'étanchéité:	IP67
Température de fonctionnement:	-40 ℃-+105 ℃	Matériel de contact:	Laiton Plaqué Or
Mettre en évidence:	M16 waterproof wire connector , IP67 low voltage connector , 2+4 pin board connector

M16 2+4 Pin ODM Industrial Power And Signal Plug Socket Connector

PA66 Plastic 2+4 Multi Pin IP67 Waterproof Connector M16

Application Industries

Growth Lights
Communications Application
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar System
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Product Features

2+4 Pin Hybrid Pin Configuration
Adopts a dedicated 2+4 pin hybrid layout, which can separately transmit power and signal, effectively avoiding interference and ensuring stable transmission for both power supply and control signals in one connector.
IP67 Waterproof & Dustproof Reliability
With multi‑ring sealing structure, it reaches IP67 ingress protection, effectively blocking moisture, dust, oil and condensate, suitable for long‑term use in humid, dusty and outdoor environments.
300V Low‑Voltage Safety Rating
Designed for low‑voltage systems with a rated voltage of 300V, providing safe and stable connection for control circuits, instrumentation, lighting and low‑voltage electrical equipment.
Wire‑to‑Board Specialized Structure
Optimized for wire‑to‑board connection mode, enabling direct and stable connection between external cables and internal PCB boards, simplifying assembly and improving integration.
Compact M16 Standard Circular Design
Standard M16 circular interface with compact size, saving installation space and suitable for small equipment, control boxes and devices with limited space.
Stable Contact & Anti‑Vibration Performance
Precision terminals with reliable contact force, ensuring stable electrical connection under vibration and shock, reducing signal attenuation and poor contact risks.
Wide Application in Low‑Voltage SystemIdeal for automation equipment, sensors, lighting systems, instrumentation and various low‑voltage control applications requiring stable waterproof connection.

Technical Specifications

Electrical Parameters
Number of Poles	2+4 pin waterproof connector
Current Rating	15+5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Specifications
