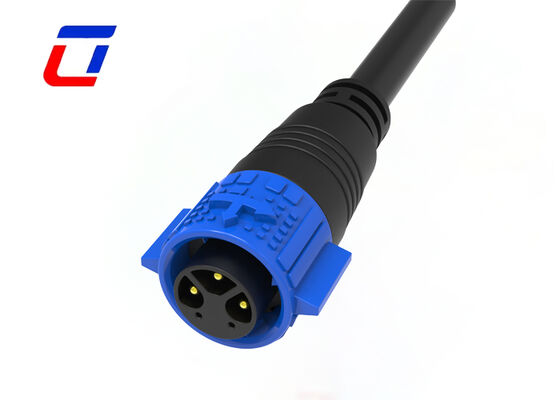

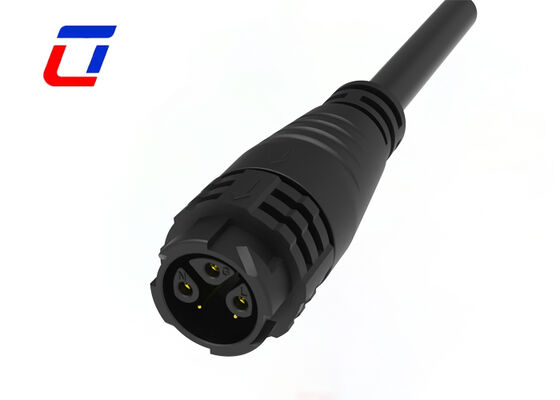

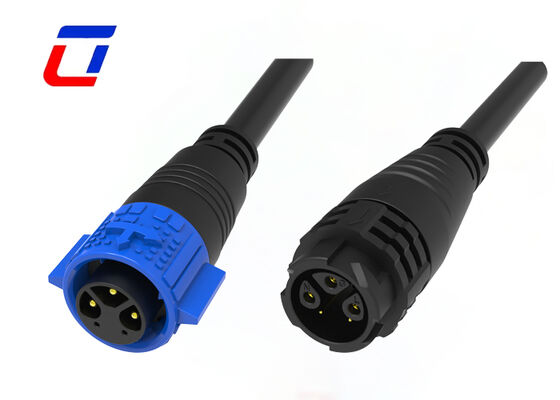

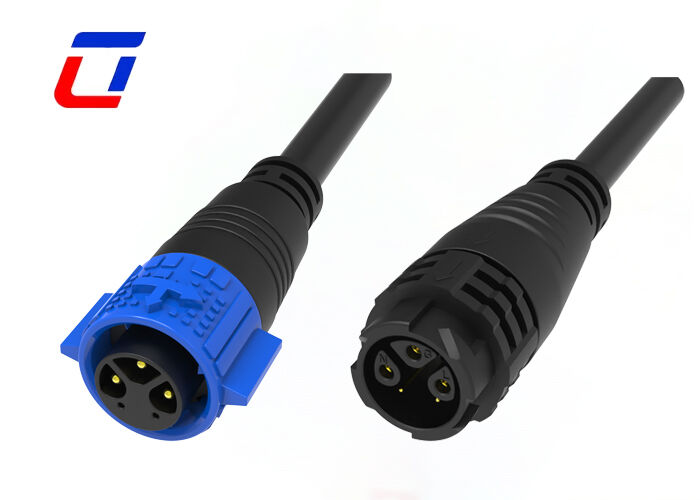

Name: 3+3 Pin M19 LED Cable Connector Quick Lock IP67 Waterproof Connectors 300V
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Aperçu Produits Connecteur imperméable de LED

3+3 Pin M19 LED Cable Connector Quick Lock IP67 Waterproof Connectors 300V

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Numéro de modèle:	M19

Conditions de paiement et expédition:

Quantité de commande min:	Négociation
Prix:	Négociable
Détails d'emballage:	Jusqu'à 1 000 m d'altitude
Délai de livraison:	5 à 8 jours ouvrables
Conditions de paiement:	T/T,D/A,D/P,MoneyGram,L/C
Capacité d'approvisionnement:	100000 paires par mois

Contact

Description de produit détaillée

Nombre de broches:	3+3PIN	Indice d'étanchéité:	IP67
Actuel:	15A	Plage de température:	-40 ℃ ~ + 105 ℃
Indice de résistance aux flammes:	UL94-V0	Mode de connexion:	Verrouillage par poussée
Mettre en évidence:	M19 LED waterproof connector , 3+3 pin quick lock connector , IP67 waterproof LED cable connector

3+3 Pin M19 LED Cable Connector Quick Lock IP67 Waterproof Connectors 300V

300V Molded Cable Connector M19 3+3 Multi Pin Quick Lock LED Wire To Wire Connector

Product Overview

This 3+3 pin M19 LED cable connector features a quick lock design, IP67 waterproof performance and 300V rated voltage, suitable for stable power and signal transmission of LED equipment, easy to install and reliable in use.

Key Features

Push lock quick release system for easy installation
Multiple core configurations: 2Pin, 3Pin, 4Pin, 5Pin for Power
Combined power/signal options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin, 2+20Pin
Signal-only options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin, 18Pin
Field assembly versions: wire to wire and wire to board options
20A current rating for continuous operation
Cable assembly service and OEM/ODM support available

Technical Specifications

Product Type Features	Cable-to-Cable, Sealable, Plastic Shell, Connector Kit
Configuration Features	3+3 Pin (3 power, 3 signal), Contacts Preloaded
Electrical Characteristics	600V AC/DC max operating voltage, 15A max contact current rating
Body Features	PA66 Shell Material, Low Fire Hazard Thermoplastic, IP67 Rated
Contact Features	Pin-Socket Contact Type
Mechanical Attachment	Cable Mount, Keyed Alignment, Mating Retention
Dimensions	Wire Size: 20AWG, 18AWG, 16AWG, 14AWG
Usage Conditions	Operating Temperature: -40°C to 105°C, IP67 Water/Dust Sealing
Industry Standards	UL 94V-0 Flammability Rating

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Power Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Production Dimensions

Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

A1: Rated voltage, also known as operating voltage, depends primarily on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly when operated below their rated voltage.
