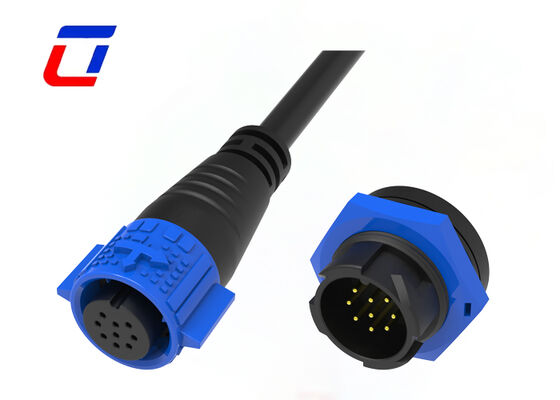

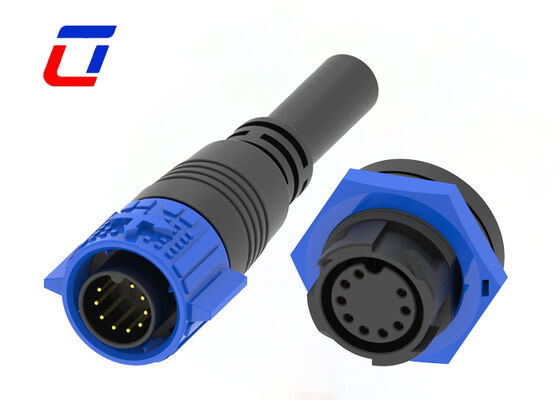

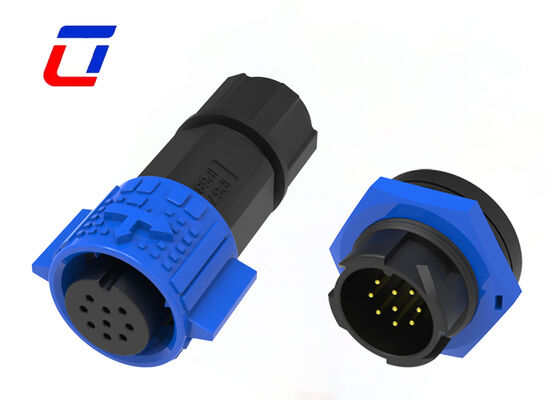

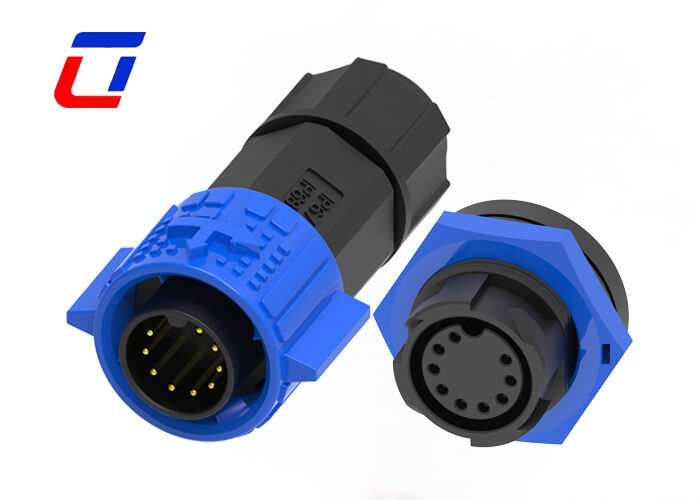

Name: 300V M19 9 Pin Automotive Waterproof Connectors Good Quality Waterproof Data Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Aperçu Produits Connecteur de données étanche

300V M19 9 Pin Automotive Waterproof Connectors Good Quality Waterproof Data Connector

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Numéro de modèle:	M19

Conditions de paiement et expédition:

Quantité de commande min:	Négociation
Prix:	Négociable
Détails d'emballage:	1. Sac en plastique ; 2. Carton ; 3. Selon les exigences du client
Délai de livraison:	3 ~ 6 jours ouvrables
Conditions de paiement:	T / T, D / P, L / C, D / A, Western Union, Moneygram
Capacité d'approvisionnement:	100 000 paires mensuellement

Contact

Description de produit détaillée

Matériel:	PA66	Niveau de protection:	IP67
Matériel de contact:	Laiton Plaqué Or	Température:	-40 à 105 °C
Matériau d'étanchéité:	Joint torique étanche	Indice de résistance aux flammes:	UL94-V0
Mettre en évidence:	300V M19 waterproof data connector , 9 pin automotive waterproof connector , M19 waterproof connector with warranty

M19 9 Pin Male Cable Connector - Industrial Waterproof Data Connector

The 300V M19 9Pin automotive waterproof connector is a high-quality grade connection solution tailored for rigorous vehicle working conditions. Designed for automotive low-voltage electrical systems, it supports simultaneous multi-channel data signal and power transmission with 300V high voltage resistance. Adopting a tool-free push-lock structure, this thread-free connector delivers quick installation and exceptional anti-vibration performance. Optimized for automotive environments with IP67 waterproofing, oil resistance and extreme temperature tolerance, it features gold-plated brass terminals to ensure stable and loss-free signal transmission for long-term vehicle operation.

Main Features

Push lock quick release system for easy connection
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power applications
Power signal combined options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly version with wire to wire and wire to board options
5A current rating for continuous operation
Cable assembly service supported with custom options available
OEM/ODM services welcome

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Product Overview

Professional Automotive-Grade Anti-Vibration Performance: Optimized structural reinforcement adapts to vehicle bumping, engine high-frequency vibration and chassis jitter. The precision locking buckle maintains zero looseness after mating, effectively eliminating intermittent connection and signal failure caused by long-term vibration, fully compliant with automotive dynamic working standards.
300V High Voltage Withstand for Superior Safety: Adopting double-layer thickened insulation structure, the connector withstands up to 300V rated voltage and resists instantaneous voltage surge and circuit fluctuation. It prevents electric leakage and insulation breakdown, providing reliable safety guarantee for 12V/24V vehicle electrical systems.
9-Pin Multi-Functional Universal Layout: The 9-core flexible pin design supports free allocation of power and signal pins, meeting transmission demands of automotive sensors, light control, audio-visual data and driving assistance systems. It simplifies complex vehicle wiring and reduces overall circuit failure points.
Gold-Plated Brass Terminals for Stable Transmission: High-purity gold-plated brass contacts feature excellent oxidation resistance, oil resistance and salt spray resistance. With ultra-low conductive resistance, it maintains zero signal drift and low power loss during long-term power-on and frequent start-stop cycles, ensuring precise operation of automotive electronic equipment.
IP67 Full Ingress Protection for Harsh Vehicle Environments: Integrated one-piece silicone sealing gasket achieves fully sealed connection after locking. It effectively blocks rainwater, mud, dust and humid condensation, ideal for external vehicle bodies, chassis and automotive lamp systems exposed to complex outdoor conditions.
Extreme Temperature & Oil Resistant Housing: Modified automotive-grade plastic withstands temperatures from -40℃ to +105℃, avoiding cracking in cold weather and softening in high heat. It resists automotive oil, electrolyte and chemical corrosion for long-lasting durability all year round.
Tool-Free Quick Lock for Efficient Installation: Advanced push-lock self-locking design realizes one-step plug locking and press release. No threading or tools required, greatly improving efficiency for mass vehicle assembly, after-sales maintenance and electronic modification projects.

Electrical Parameters

Number of Poles	9Pin
Current Rating	5A max
Voltage Rating	60VAC max
Durability Voltage	500VAC @ 60s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

Q: What payment methods do you accept?

A: We support mainstream international payment methods including T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, our standard term is 30% down payment with 70% balance due before shipment.

Q: How can I get samples?

A: We are pleased to provide samples, with freight costs covered by the customer. Please provide your courier account number and detailed address for immediate sample shipment.

Q:How do you guarantee product quality?

A: We implement strict quality control throughout the production process: raw material inspection, in-line testing, and final sampling inspection. All products come with a 12-month warranty against manufacturing defects.
